Samsung tears down its own Gear S3 smartwatch to reveal what’s inside

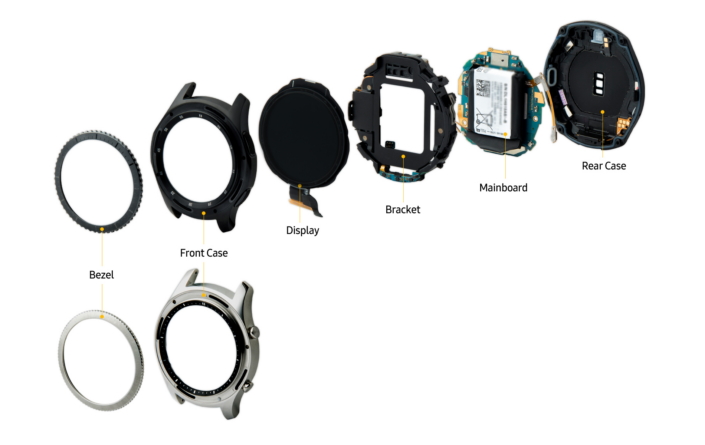

Samsung tore down its Gear S3 smartwatch to show fans just how it managed to get so much tech crammed into the device’s small 46mm x 49mm x 12.9mm frame.

The company first took apart the Gear S3’s two-way rotating bezel and front case, revealing the components that make the interface work: a bezel guide sandwiched between the bezel and front case and a system of ceramic balls and springs.

GearS3_Teardown_Main_2_Front_Bezel-and-Front-Case

It’s also interesting to note that the entire front case of the of the Gear S3 functions as a radio frequency (RF) antenna, which facilitates the device’s 3G/LTE connectivity.

GearS3_Teardown_Main_3_Display

The company further pulled apart the display and bracket, which is equipped with a linear motor in order to produce a variety of patterns and rhythms of vibrations. Linear motors produce straight-line motion rather than torque, or rotary motion.

GearS3_Teardown_Main_4_Bracket

Additionally, Samsung shows off the wearable’s mainboard which houses the majority of its sensors, like GPS, barometer and heart rate.

GearS3_Teardown_Main_5_Mainboard

Finally, it details the rear case and bands, which are now swappable with standard 22mm watch bands.

GearS3_Teardown_Main_8_Rear

Check out the full teardown here.
